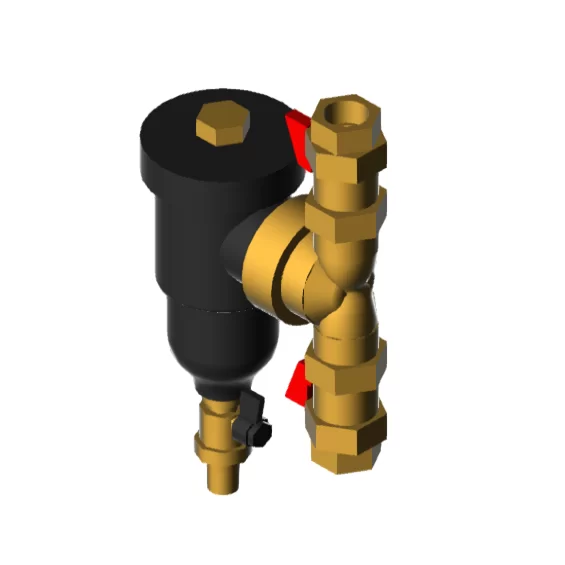

Caleffi – NA5453 – DIRTMAG® – Dirt Separator with Magnet for Vertical or Horizontal Pipes

Product Description:

The DIRTMAG® low-velocity zone dirt separator with magnet efficiently removes particles to a very small size with very low-pressure head losses compared to typical Y-strainers, which reduces pumping demands. The large dirt collection chamber requires infrequent cleaning, which is quick and efficient with an easy-to-use drain valve. Ferrous impurities, including magnetite, are trapped inside the collection chamber by a strong magnetic field created by a powerful removable external rare-earth magnet around the body below the flow valve. This allows for fast and effective capture, up to 100% elimination efficiency, and discharge.

Revit Description:

We built this data-rich dirt separator Revit family with enhanced functionality features such as the following:

• Controls for horizontal and vertical configuration
• Multiple tailpiece options available (with and without isolation valves)
• Accurately curated Revit BOM for component products included and not included “in box” with the main purchasable product
• Additional mechanical design features to help you efficiently design with this dirt separator in your Revit system
  • Specify pressure drop
  • View a flow indicator warning if the flow rate exceeds the maximum allowable
• Ready to Try? A Revit Instruction Content Guide is also available with the Revit family download

• Manufacturer
• Caleffi North America

• Manufacturer Website (US)
• https://www.caleffi.com/usa/en-us

• Where to Download
• https://bim.caleffi.com/en-us/bim/na5453
