FAB360 fabrication database is an innovative, enhanced solution for the Fabrication CADmep and Revit platforms that gives users peace of mind when it comes to generating accurate and standardized models with optimized efficiency.
Why Certified Content?
- Enhanced and accurate representation of parts
- In constant alignment with the manufacturer’s specifications
- Enable efficient BIM coordination and design modeling during the preconstruction process
- Accelerate time to production
- Enable accurate Bill of Materials (BoM) lists
- Produce accurate installation drawings
- Alleviate field issues
Our Solution
Quality
Provides assurance when generating accurate, industry-compliant, standardized, coordinated digital model deliverables.
Efficient
Increases workflow efficiencies, resulting in improved time management and deliverable timelines.
Specialized
Configured to leverage the powerful ‘Design Line Takeoff’ functionality.
Up-to-date
Ensures the latest, up-to-date manufacturing BIM data is being leveraged.
Flexible
Enables conversion of Revit (RFA) based models to fabricable parts (cross-platform).
Accurate
Provides the ability to generate accurate Bill of Material reports.
Piping Fabrication Database
There are over 200 innovative design services covering Mechanical, Plumbing, and Process systems that allows users to start modeling with minimal pre-setup requirements.
Services Included:
- 3 Condensate
- 15 Domestic Water
- 23 DWV – CPC (Chicago)
- 18 DWV – IPC (NH)
- 12 DWV – IPC (PVC)
- 15 DWV – IPC (SV)
- 14 GAS
- 12 Heating Water
- 12 Mechanical Condenser Water
- 15 Mechanical Waters
- 6 Non-Potable Water
- 39 Process Gases
- 6 Process Vacuum
- 10 Refrigerant
- 24 Specialty Water
- 4 Steam
- 8 Storm Drain
Key Features:
- Design Line and RFAs-Fab Parts Conversion Automations.

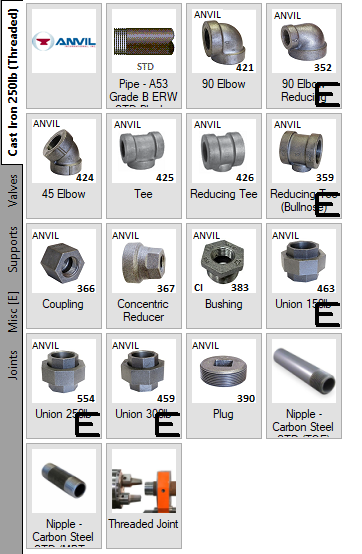

- Extensive Manufacturers Certified Fabrication Parts.
- AIA CAD Layer Standards
- Precise Lay Length and Insertion Depths Dimensions (Cup Depth)
- Product Information Editor Included.
- Fabrication Reports.
- Incorporated CINX/HPH Codes.
HVAC Fabrication Database
- Built with SMACNA Standards
- Pre-Configured Button mapping
- Materials and Specifications
- HVAC Equipment
- Round/Straight/Oval
- SMACNA Labor and installation rates
Design Services Included:
HPSA – High Pressure Supply Air
LPMUA – Low Pressure Make-Up Air
LPRA – Low Pressure Return Air
LPSA – Low Pressure Supply Air
MPMUA – Medium Pressure Make-Up Air
MPRA – Medium Pressure Return Air
MPSA – Medium Pressure Supply Air
OAI – Outside Air Intake
SPD – Stairwell Pressurization Duct
BF – Boiler Flue
DE – Dryer Exhaust
TE – Toilet Exhaust
RA – Relief Air
GD – Grease Duct
GE – General Exhaust Air
IEA – Isolation Exhaust Air
We continually and directly work with manufacturers to ensure the data is accurate and current. This, along with the other advantages, provides the confidence needed for successful projects.
